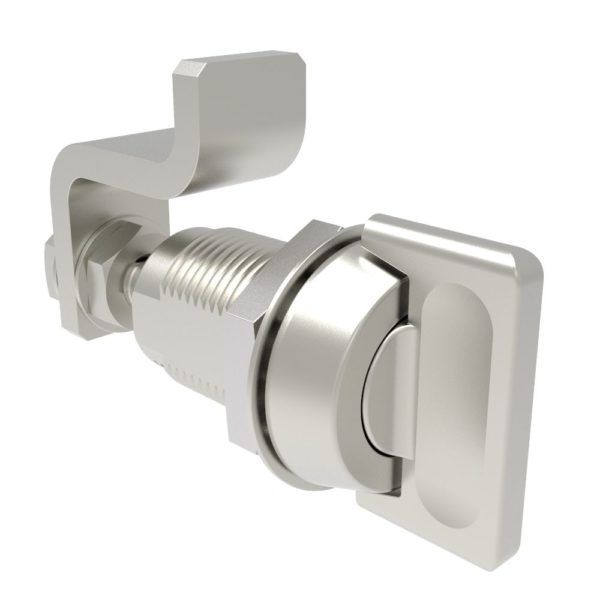

Beskrivelse
| Material | Stainless Steel |
|---|---|
| Finish | Electropolished |
| Access Restriction | No Restriction |
| Grip Type | Adjustable |
| Mounting Style | Single Hole Mount |
| Head Style | Knob Style |
| Series | Standard |
| Min. Outer Panel Thickness (mm) | 0.00 |
| Max Outer Panel Thickness (mm) | 13.00 |
| Grip – Minimum (mm) | 6.40 |
| Grip – Maximum (mm) | 9.50 |
| Cam Attached | Yes |
| Rotation | Type A – Turn Clockwise to Latch |
| Actuator Type | Cylinder Lock |
| Compliance Specification | UL FTTA2 / FTTA8 Type 1 |
| Latching Points | Single or Three – Point |
| Class | E3 – VISE ACTION® Compression Latches |
| Size | 13.5mm |
